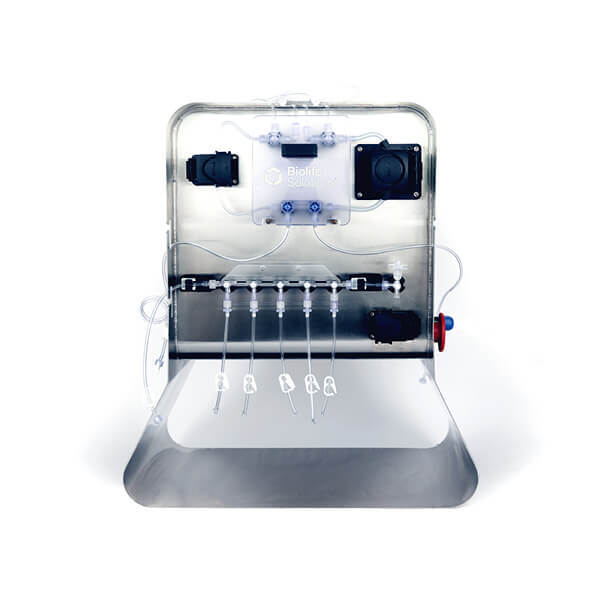

Signata CT-5®, Closed Fluid Handling System

Signata CT-5®, Closed Fluid Handling System

Part Number: CT-5

The Signata CT-5® is a closed fluid and universal cell management system designed for flexible automated filling into both cryobags and CellSeal® Cryogenic Vials, CellSeal Connect Vials and CellSeal CryoCase containers. Fill directly into ready-to-use CellSeal cryovials, CryoCase containers or weld multiple bags onto the fill sets according to your needs. Combine different containers to allow for QC or retention samples.

$96450.00

Note: A $200 minimum spend is required to checkout.

Product Specifications

Flow Rates:
Pump 1: 44 mL/min maximumPump 2: 528 mL/min maximum
System Dimensions:
Base CT-5 system: 44.6 cm W x 59.3 cm H x 34.7 cm D
Base height dimension does not include removable bag hanger
Shelf (removable): 23.5 cm W x 15.2 cm H x 35.6 cm D
Signata Formulation Module: 35.6 cm W x 36.4 cm H x 24.1 cm D
Mains voltage and current requirements:
110/120 ~V, 4 A, 60 Hz or 220/240 ~V, 2 A, 50 Hz
Remote tablet: 110/120 ~V or 220/240 ~v, 1.5 A, 50/60 Hz
Cleaning: Cabinet: 70% Isopropanol in water.
Weight:
Base CT-5 System: 33 kg (73 lbs)
Signata Formulation Module: 13.6 kg (30 lbs)
Operating conditions: 10-40 °C, 35%-95% R.H., up to 2000 m above sea level
Software is validated for the use with a Wi-fi wireless connection.
Noise level: Maximum of approximately 65 dBA
Shipping Box Dimensions: 36 x 22 x 22 in
Shipping Weight: 150 lbs
